RT80 Retrofit Torch
RT80 Retrofit Torch
Upgrade for your Powermax 1100If you're ready to enhance your Powermax1100 with the kind of performance and reliability you'd expect to get only from a Hypertherm G3 Series™ system ... then you're ready for the new RT80 retrofit torch.
RT80 TORCH
This capable 80-amp torch solution incorporates patented and proven performance enhancements: Coaxial-assist™ jet technology for faster cut speeds and Hypertherm electrode technology for parts life up to 10 times longer. Whether your Powermax1100 is part of a manual or a mechanized system, outfitting it with the new RT80 is sure to set new standards in your metal cutting operations.
BENEFITS The RT80 retrofit torch delivers outstanding product benefits!
- Cut speeds up to 48% faster – 19 ipm on 1-inch steel (480 mm/m on 25 mm steel) with patented Coaxial-assist
jet technology 173% longer consumable life through unique torch dynamics and HyLife electrode technology- Consistent cut quality assured by patented blow-back contact-start torch technology
- Based on the proven design of the Hypertherm T80 torch for the Powermax1250 G3 Series
- Most consumables compatible with existing Powermax1250 and other G3 systems, allowing for consolidation of SKUs New narrow-profile nozzle shield allows drag-cutting convenience with the narrow front-end profile of a nozzle
- Chemically cross-linked cable jacket is twice as cut resistant and four times more burn resistant than competitive cables Quick-disconnect torch assembly provides a strain relief designed for durability
- Backed by 1-year torch-and-lead warranty
Hypertherm's patented Coaxial-assist jet design boosts
cutting speed as much as 20% over conventional designs.
COMPATIBLE WITH THESE HYPERTHERM SYSTEMS
- Powermax1100
PRODUCTIVITY
The RT80 torch delivers production costs almost 30% lower than the original PAC135T torch on 3/4-inch mild steel, due to higher cutting speeds and dramatically increased parts life.

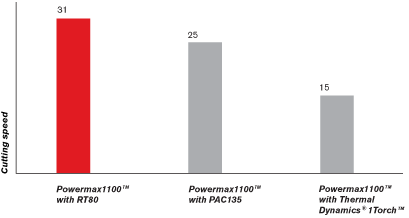

Cutting speed on 3/4-inch mild steel (19 mm)

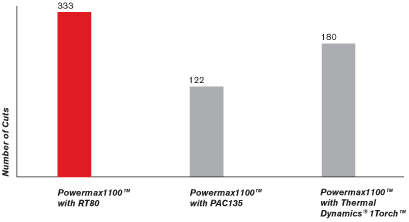

Number of 12-inch edge-started cuts on 3/4-inch mild
steel (19 mm)

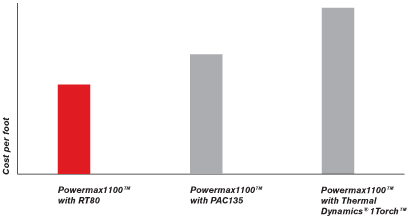

Relative cost of cutting on 3/4-inch mild steel (19 mm)
RT60 TORCH CONPONENTS
Mechanized torch
Kits and accessories
- Mechanized consumable parts kit
- Leather lead cover
RT80 Machine Torch Assemblies 087035 RT80M Machine Torch Assembly, 25 ft (7.5 m) Leads
087036 RT80M Machine Torch Assembly, 50 ft (15 m) Leads
